Colored Electrical Tape – Non Standard Widths (62018C)

SKU: 62018-C Weight: 1 lbs Length: -

Shipping to via
Select all required options and we will let you know how soon you can receive your order.

Total: $ -

Colored Electrical Tape, By?the Case

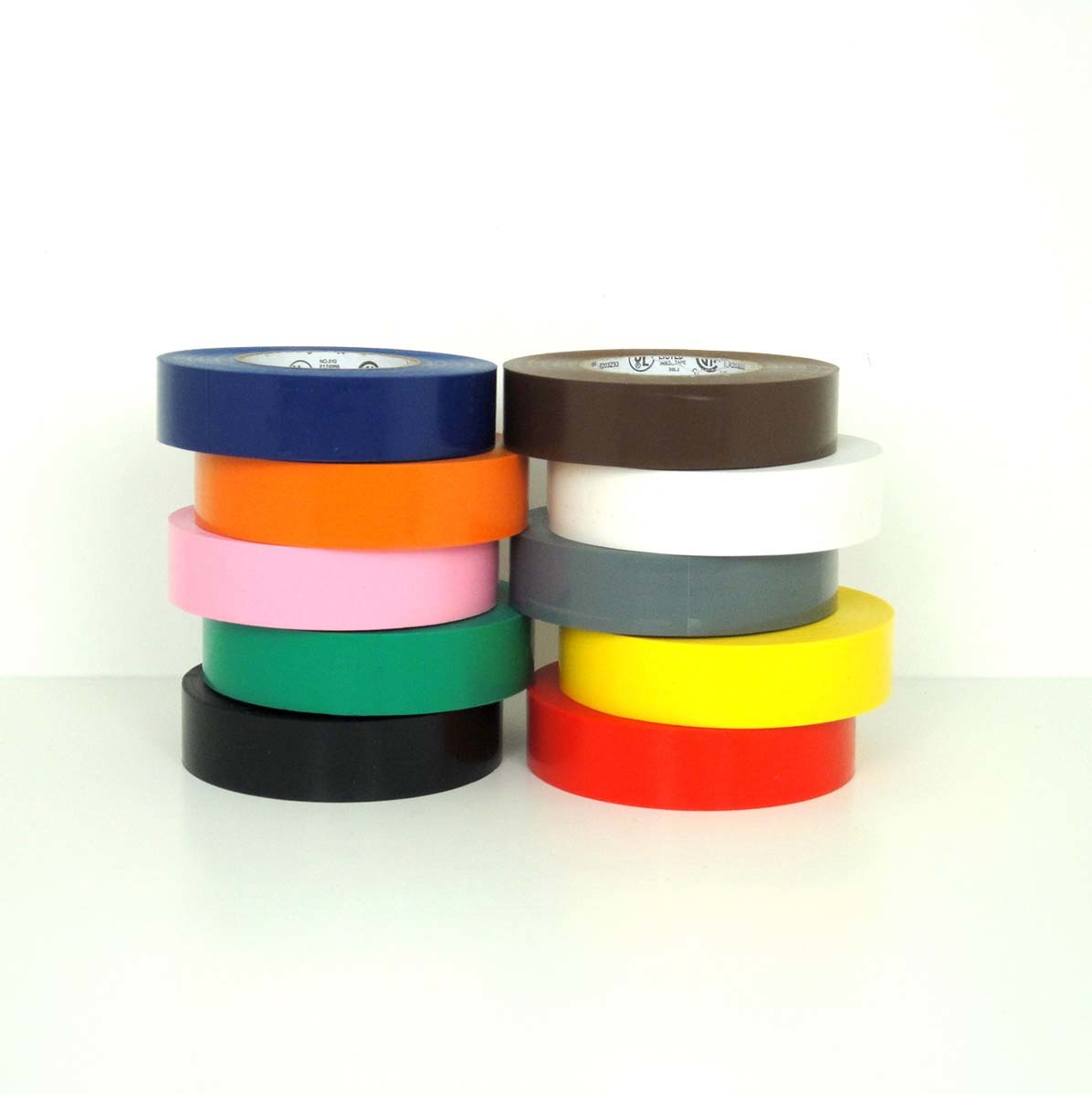

Electrical Tape (62018) is a line of colored PVC Electrical Insulation Tapes with Rubber based adhesive, which is flame retardant and cold weather resistant used generally for insulating, protection, and color-coding of electrical wires; for wire harnessing in automotive industry. 62018 Rolls are individually cello-wrapped and labeled with a custom slit and bulked packed. 1-1/2″ (38.1MM) UL/CSA Labeled Core.


  • Backing: Plasticized PVC
  • Adhesive: Rubber based
  • Total Thickness: 7 mil (0.18mm)
  • Voltage Breakdown: 8kv
  • Peel Adhesion: 16.4 oz/in
  • Tensile Strength: 14.8 lbs/inch
  • Elongation at Break: 200%
  • Temperature Resistance: 14?F to 176?F
  • Core listed: UL/CSA/CE


7 Colors available: Black, Yellow, Green, Orange, White, Red, Blue.

Widths: 3/8 inch, 1/2 inch, 1 inch, 1.5 inch, 2 inch, 3 inch.

Length: 66 Feet per Roll


NOTE: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.
