Alanson Products

3/4″ Black Electrical Tape (62018)

SKU: 62018 Weight: 3 lbs Length: -

Clear
Shipping to via
Select all required options and we will let you know how soon you can receive your order.

Total: $ -

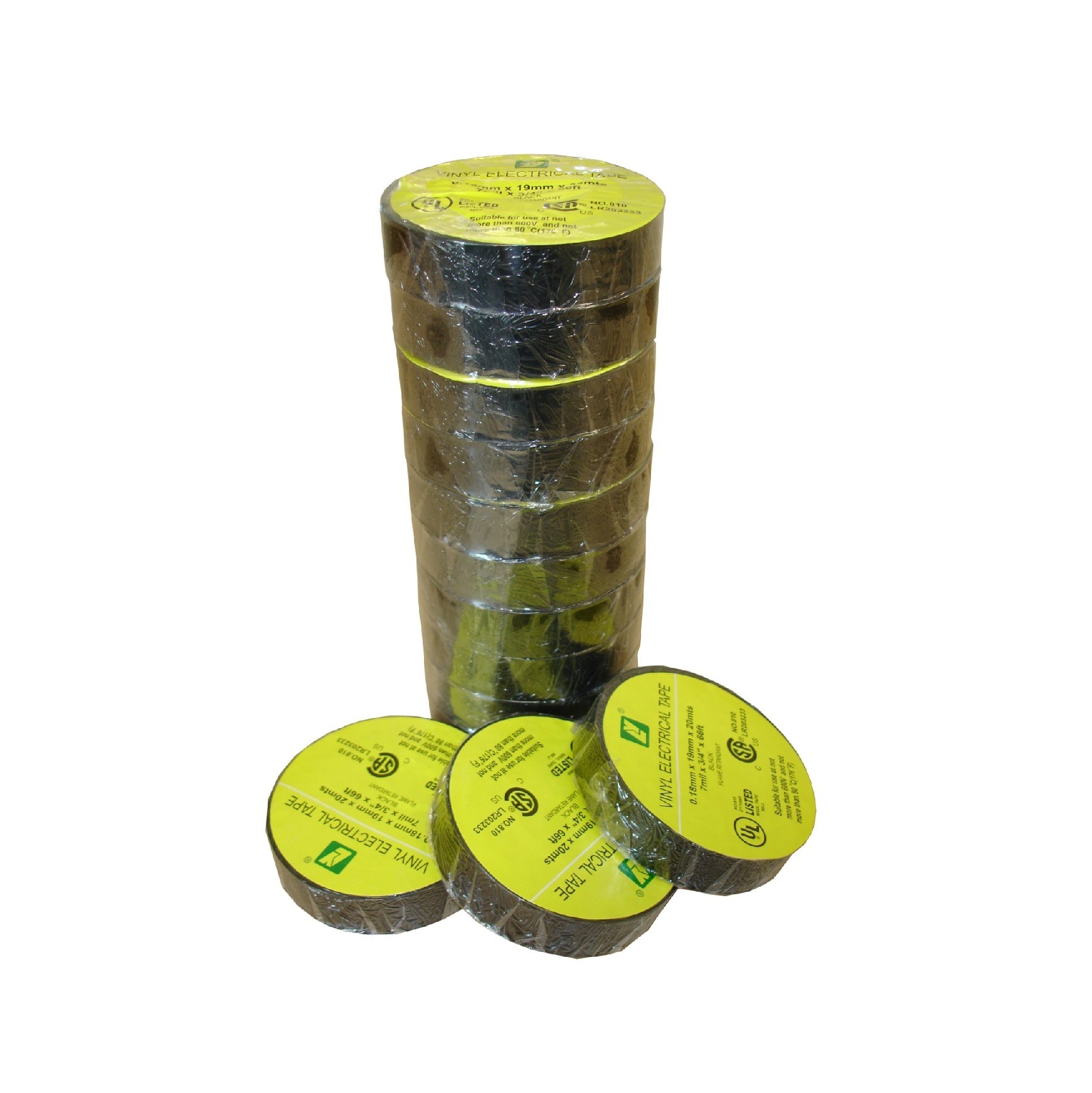

Black Electrical Tape (62018) is a line of PVC Electrical Insulation Tapes with Rubber based adhesive, which is flame retardant and cold weather resistant used general for insulating, protection, and color-coding of electrical wires; for wire harnessing in automotive industry.

Black Electrical Tape Rolls are individually cello-wrapped and labeled.

UL/CSA Labeled Core:?1-1/2″ (38.1MM)

SPECIFICATIONS:

  • Backing: Plasticized PVC
  • Adhesive: Rubber based
  • Total Thickness: 7 mil (0.18mm)
  • Voltage Breakdown: 8kv
  • Peel Adhesion: 16.4 oz/in
  • Tensile Strength: 14.8 lbs/inch
  • Elongation at Break: 200%
  • Temperature Resistance: 14?F to 176?F
  • Core listed: UL/CSA/CE



NOTE: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.
